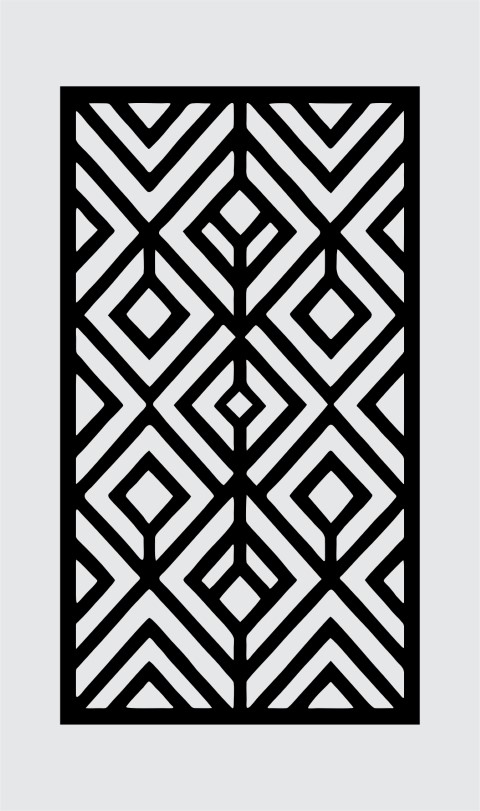

Modern Geometric Diamond Lattice Jali Design – CNC Laser Cut Vector Panel
Description
Add a bold, contemporary structural element to your spaces with this modern geometric diamond jali panel. Featuring a striking, repeating lattice of large and small interconnected diamond (rhombus) shapes, this design provides a clean, minimalist aesthetic with a strong visual impact. It is an excellent choice for crafting modern room dividers, stylish privacy screens, architectural wall panels, and bespoke metal or wood grilles. Note: Original image was AI-assisted using Google Flow and Google Gemini. The final artwork has been manually modified, refined, and converted into a vector by us. Credit to Google Flow and Google Gemini for the initial concept.
Specifications
Design Type :Symmetrical Vector / Cut File Template
Orientation :Portrait (Vertical Rectangle)
Pattern Style : Modern Geometric, Diamond Lattice, Argyle Pattern, Intersecting Lines
Recommended Processing :CNC Routing, Laser Cutting, Plasma Cutting
Software Support : Compatible with AutoCAD, ArtCAM, CorelDRAW, Adobe Illustrator, and other vector-based CAM/CAD software
Other Features
- Optimized for Cutting: Built entirely with straight linear paths, bold geometric intersecting lines, and uniform frame thickness, ensuring extremely fast cutting times, minimal tool wear, and superior structural rigidity for the CNC machine.
- Highly Scalable: The structured, mathematical diamond grid allows it to be easily scaled up for massive architectural statement walls or scaled down for modern cabinet door inserts without losing its bold proportions.
- Versatile Application: Highly suited for modern, industrial, and minimalist spaces, ideal for creating contemporary wooden partitions, heavy-duty metal privacy screens, ceiling panels, and sleek balcony balustrades.
Tags
CNCjalijali patterndecorative panelroom dividergeometric designdiamond latticeargyle patternmodern jaliprivacy screenvector artcnc fileinterior decorarchitectural screen
