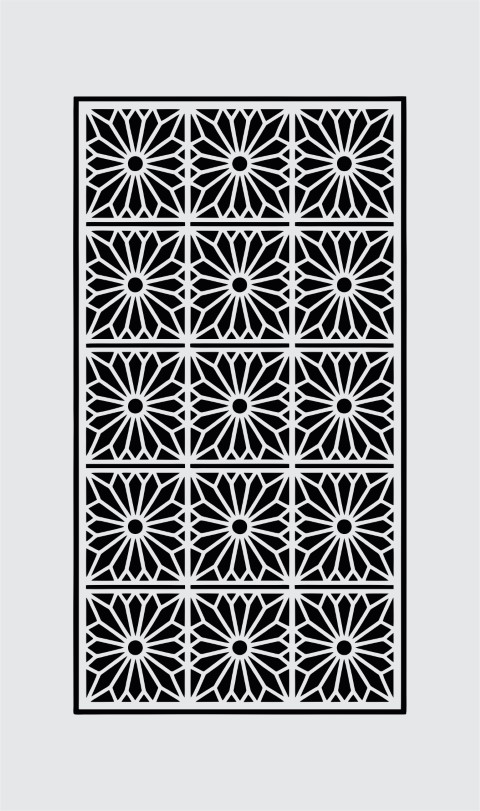

Classic Geometric Star Grid Jali Design – CNC Laser Cut Vector Panel
Description
Bring structure and classic architectural beauty to your space with this geometric grid jali panel. Featuring a meticulously arranged matrix of square tiles, each housing a radiant multi-pointed star or sunburst motif, this design beautifully blends traditional Islamic geometry with clean, modern grid lines. It is an excellent choice for crafting highly structured room dividers, elegant privacy screens, decorative ceiling panels, and sophisticated wall decor. Note: Original image was AI-assisted using Google Flow and Google Gemini. The final artwork has been manually modified, refined, and converted into a vector by us. Credit to Google Flow and Google Gemini for the initial concept.
Specifications
Design Type :Symmetrical Vector / Cut File Template
Orientation :Portrait (Vertical Rectangle)
Pattern Style : Geometric Grid, Islamic Star Pattern, Radiant Sunburst, Traditional Lattice
Recommended Processing :CNC Routing, Laser Cutting, Plasma Cutting
Software Support : Compatible with AutoCAD, ArtCAM, CorelDRAW, Adobe Illustrator, and other vector-based CAM/CAD software
Other Features
- Optimized for Cutting: Constructed with a highly structured grid framework and uniform straight-edged cutouts, ensuring robust structural integrity and highly efficient, warp-free machining on CNC systems.
- Highly Scalable: The modular, tiled nature of the square grid allows for seamless expansion into large architectural walls or reduction into small, precise cabinet door inserts without distorting the pattern.
- Versatile Application: Highly adaptable for both classic and contemporary settings, making it ideal for wooden space partitions, metallic balcony screens, structured false ceilings, and interior wall paneling.
